Portable Wire Truck Axle Scale Digital Balance Touch Screen Indicator Customized OEM ODM Supported Weighing Scales

1 set
MOQ
USD300~600
Prijs
Portable Wire Truck Axle Scale Digital Balance Touch Screen Indicator Customized OEM ODM Supported Weighing Scales
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Productnaam: Draagbare weegschaal voor assen
Type: Achsschaal
Type weergave: 100 tot 240 V
Modelnummer: AS002
Gebruik: Weeg het gewicht van het product
Markt: over de hele wereld
Nominale belasting: 30t
Basis informatie
Plaats van herkomst: CHINA
Merknaam: SKYERSCALE
Certificering: CE
Modelnummer: AS002
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: doos
Levertijd: 5-30 werkdagen
Betalingscondities: T/t
Levering vermogen: 1 stuk per dag
Productomschrijving

Portable Wire Truck Axle Scale Digital Balance Touch Screen Indicator Customized OEM ODM Supported Weighing Scales

Configuration Table
Model

Size(A*B*C)

(mm)

Capacity

(Per Weigh Pad)

 Description(Each Pad)
AS002 300*400*35 500/1000/1500Kg

4pcs LoadCell,10m Cable

Capacity:500/1000/1500Kg
400*500*58 1500/2500/3000/Kg

4pcs LoadCell,10m Cable

Capacity:1500/2500/3000Kg
400*500*58 5000Kg

4pcs LoadCell,10m Cable

Capacity:5000Kg
450*700*58 5000/10000/15000Kg

6pcs LoadCell,10m Cable

Capacity:5000/10000/15000Kg
500*900*58 10000/15000/20000/25000Kg

6pcs LoadCell,10m Cable

Capacity:10000/15000/200000Kg



Product Parameters
Rated load:1/2/3/5/6/10/20/30/40T Compensated temp.range(℃): -10~+50
Dynamic error (%F.S): 3 (5~10km/h) Static error (%F.S):0.1~0.3
Static comprehensive error(%F.S): 0.1~0.5 Insulation resistance(MΩ): ≥5000(100VDC)
Rated output(mV/V): 1.0±0.1 Use temp.range(℃): -30~+80
Non-linearity(%F.S): 0.2 Temp.effect on zero(F.S/10℃): 0.03
Error on corners(%F.S): 0.2 Temp.effect on span(F.S/10℃): 0.05
Repeatariy(%F.S): 0.05 Safe overload(%): 120
Zero balance(%F.S): ±1 Ultimate overload(%): 150
Excitation voltage(VDC): 9~15 Net weight(kg): 45
Recommended voltage(V): 10 Defend grade: IP66
Wireless Specification
A/D conversion method Σ-Δ 24bit
Input signal range –19.5mV~19.5mV
Load cell excitation DC 5V
Max. connection number of load cell 1~4
Load cell connection mode 4 wire
Operating temperature -10 °C ~40 °C
Allowable working temperature -40 ° C ~ 70 ° C
Wireless transmission frequency 430MHz to 470MHz
Wireless transmission distance 800 meters (In Open Place)
Features
  • 1):two separate calibration of the weighing platform, with a 10-point amendment to greatly improve the accuracy of the product.
  • 2):The floating zero and zero tracking technology, the complete elimination of zero drift.
  • 3):Figures of the menu operation, simple and clear.

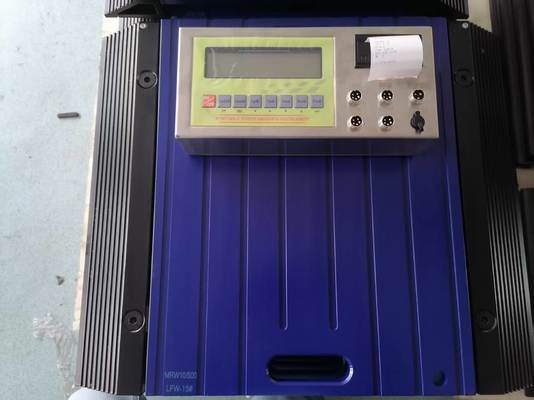

Portable Wire Truck Axle Scale Digital Balance Touch Screen Indicator Customized OEM ODM Supported Weighing Scales 0

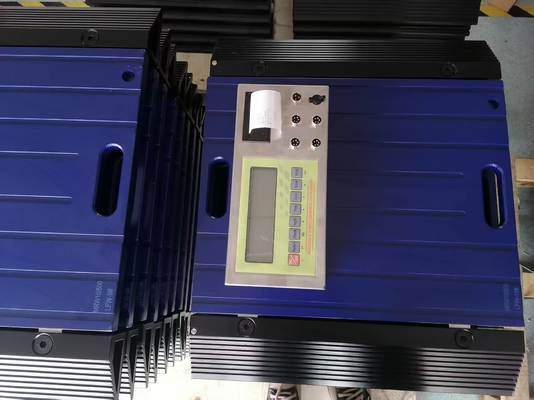

Portable Wire Truck Axle Scale Digital Balance Touch Screen Indicator Customized OEM ODM Supported Weighing Scales 1
